用于空氣介質旋轉接頭

您當前所在的位置：首頁 -> 產品中心 -> 用于空氣介質旋轉接頭

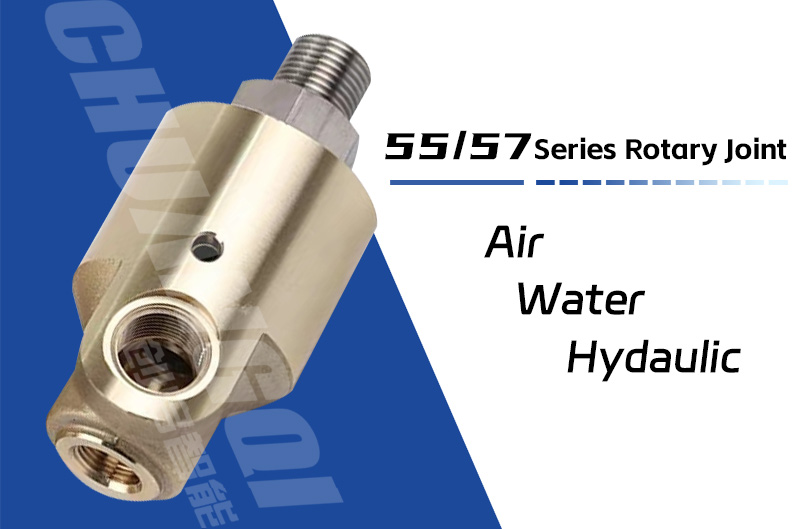

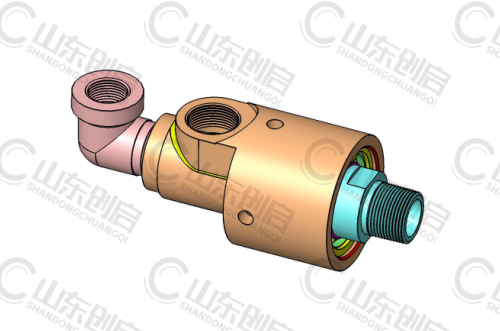

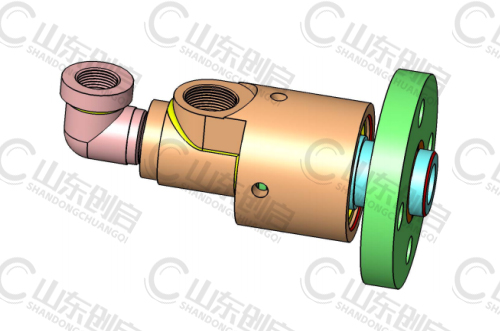

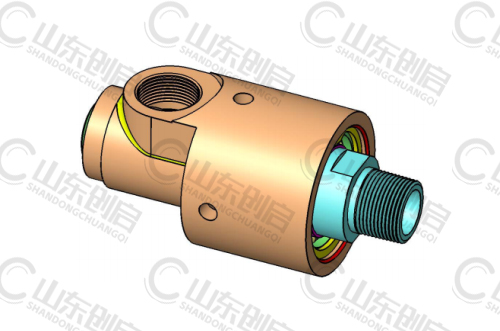

55/57系列通用型旋轉接頭（代替進口杜博林DEUBLIN）

發表時間：2022-12-09 18:07:39 | 點擊率：308

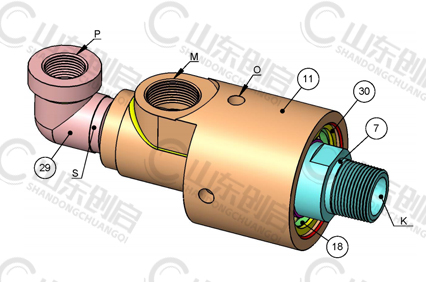

產品特點

PRODCUT FEATUREA

- 單通道和雙通道設計，滿足各種工況需求；
- 自支撐旋轉接頭
- 徑向殼體連接
- 平衡式機械密封結構
- 密封更換快速簡單（轉子密封，浮動密封)
- 鍵式轉子密封滾珠軸承潤滑延長使用壽命
- 可選密封組合：碳石墨對碳化硅（陶瓷）
碳化鎢對碳化硅（陶瓷）
- 3散熱觀察孔（高速型）
- 鍛造銅合金殼體
- 不銹鋼空心軸（轉子）：?~1"
- 徑向殼體連接
- 平衡式機械密封結構

技術參數

PATMETERS

介質：	最大壓力	溫度	轉速
水	1.8MPa	-30~+100℃	3500RPM
空氣	1.1MPa	+121℃	1000RPM
水	1.8MPa	-30~+100℃	3500RPM
液壓油	3.0MPa	-30~+75℃	500RPM

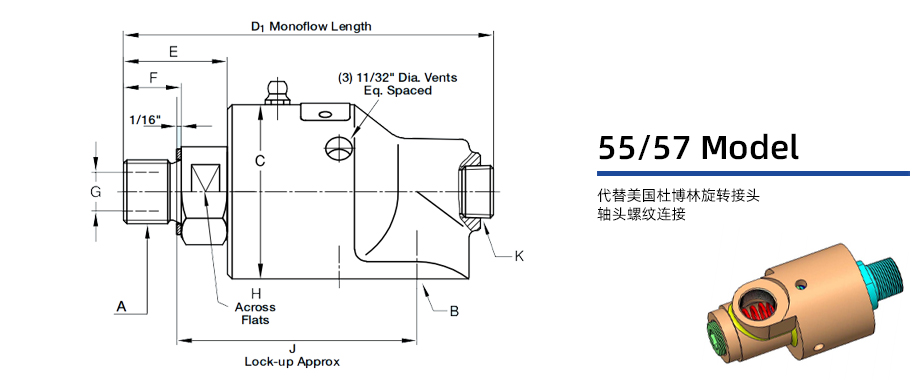

55/57系列通用型旋轉接頭規格尺寸
B Prot G	Oridering Number
B Prot G	55 Series All Purpose	55 Series E.L.S.	57 Series Water Service	57 Series E.L.S.	A① Rotor Thread	C	D1	D2	E	F	G	H	J
3/8"	55-000-001	55-147-151	57-000-001	57-050-001	3/8"NPT RH	1-3/4"	3-15/16"	4-13/16"	1"	5/8"	3/8"	7/8"	2-11/16"
	55-000-002	55-147-152	57-000-002	57-050-002	3/8"NPT LH	1-3/4"	3-15/16"	4-13/16"	1"	5/8"	3/8"	7/8"	2-11/16"
	55-000-003	55-147-149	57-000-003	57-050-003	5/8"-18 UNF RH	1-3/4"	3-15/16"	4-13/16"	1"	5/8"	3/8"	7/8"	2-1/2"
	55-000-004	55-147-150	57-000-004	57-050-004	5/8"-18 UNF LH	1-3/4"	3-15/16"	4-13/16"	1"	5/8"	3/8"	7/8"	2-1/2"
	55-000-094	55-147-192	57-000-094	57-050-094	G3/8"(BSP) RH	44.5	102	123	26	16	9.5	22	63
	55-000-004	55-147-150	57-000-004	57-050-004	G3/8"(BSP) LH	44.5	102	123	26	16	9.5	22	63
1/2"	55-000-001	155-208-113	157-000-001	157-050-001	1/2"NPT RH	2-1/4"	4-13/16"	5-7/8"	1-7/16"	7/8"	1/2"	1-3/16"	3-1/2"
	155-000-002	155-208-114	157-000-002	157-050-002	3/8"NPT LH	2-1/4"	4-13/16"	5-7/8"	1-7/16"	7/8"	1/2"	1-3/16"	3-1/2"
	155-000-021	155-208-185	157-000-021	157-050-021	3/4"-16 UNF RH	2-1/4"	4-11/16"	5-3/4"	1-5/16"	3/4"	1/2"	1-3/16"	3-1/16"
	155-000-022	155-208-229	157-000-022	157-050-022	3/4"-18 UNS LH	2-1/4"	4-11/16"	5-3/4"	1-5/16"	3/4"	1/2"	1-3/16"	3-1/16"
	155-000-151	155-208-252	157-000-151	157-050-151	G1/2"(BSP) RH	57.2	120	148	34	19	12.7	30	78
	155-000-152	155-208-253	157-000-152	157-050-152	G3/8"(BSP) LH	57.2	120	148	34	19	12.7	30	78
3/4"	255-000-020	255-052-255	257-000-020	257-050-020	3/4"NPT RH	2-7/8"	5-9/16"	6-3/4"	1-7/16"	7/8"	11/16"	1-1/4"	4-1/16"
	255-000-021	255-052-256	257-000-021	257-050-021	3/4"NPT LH	2-7/8"	5-9/16"	6-3/4"	1-7/16"	7/8"	11/16"	1-1/4"	4-1/16"
	255-000-003	255-052-258	257-000-135	257-050-135	1"-14 UNS RH	2-7/8"	5-7/16"	6-5/8"	1-5/16"	3/4"	21/32"	1-1/4"	3-11/16"
	255-000-027	255-052-257	257-000-027	257-050-027	3/4" UNS LH	2-7/8"	5-7/16"	6-5/8"	1-5/16"	3/4"	21/32"	1-1/4"	3-11/16"
	255-000-284	255-052-445	257-000-284	257-050-284	G3/4" (BSP) RH	73	138	168	34	19	17.5	36	94
	255-000-285	255-052-446	257-000-285	257-050-285	G3/4" (BSP) LH	73	138	168	34	19	17.5	36	94
1"	355-000-002	355-064-186	357-000-002	357-050-002	1"NPT RH	3-1/4"	6-13/16"	8-5/16"	1-15/16"	1-1/8"	1"	1-1/2"	4-11/16"
	355-000-003	355-064-187	357-000-003	357-050-003	1"NPT LH	3-1/4"	6-13/16"	8-5/16"	1-15/16"	1-1/8"	1"	1-1/2"	4-11/16"
	355-000-019	355-064-328	357-000-019	357-050-019	1-1/2"-12 UNF RH	3-1/4"	6-13/16"	8-5/16"	1-15/16"	1-1/8"	1"	1-1/2"	4-1/4"
	355-000-074	355-064-329	357-000-074	357-050-074	1-1/2"-12 UNF LH	3-1/4"	6-13/16"	8-5/16"	1-15/16"	1-1/8"	1"	1-1/2"	4-1/4"
	355-000-222	355-064-378	357-000-222	357-050-222	G1"(BSP) RH	83	166	204	42	21.5	22.2	36	108
	355-000-223	355-064-379	357-000-223	357-050-223	G1"(BSP) LH	83	166	204	42	21.5	22.2	36	108
1-1/4"	525-000-001	525-097-043	527-000-001	527-050-001	1-1/4"NPT RH	3-9/16"	7-9/16"	9-3/8"	2-3/16"	1-1/8"	1-1/4"	1-3/4"	5-1/4"
	525-000-002	525-097-044	527-000-002	527-050-002	1-1/4"NPT LH	3-9/16"	7-9/16"	9-3/8"	2-3/16"	1-1/8"	1-1/4"	1-3/4"	5-1/4"
	525-000-026	525-097-095	527-000-026	527-050-026	1-3/4"-12 UNS RH	3-9/16"	7-9/16"	9-3/8"	2-3/16"	1-3/16"	1-1/4"	1-3/4"	4-11/16"
	525-000-027	525-097-096	527-000-027	527-050-027	1-3/4"-12 UNS LH	3-9/16"	7-9/16"	9-3/8"	2-3/16"	1-3/16"	1-1/4"	1-3/4"	4-11/16"
	525-000-054	525-097-122	527-000-054	527-050-054	G1-3/4" (BSP) RH	90.5	191	234	54	27	30.2	46	119
	525-000-055	525-097-123	527-000-055	527-050-055	G1-3/4" (BSP) LH	90.5	191	234	54	27	30.2	46	119
1-1/2"	555-000-001	555-033-154	557-000-001	557-050-001	1-1/2"NPT RH	4-1/4"	8-1/2"	10-5/16"	2-7/16"	1-3/16"	1-1/2"	2-1/8"	6"
	555-000-002	555-033-160	557-000-002	557-050-002	1-1/2"NPT LH	4-1/4"	8-1/2"	10-5/16"	2-7/16"	1-3/16"	1-1/2"	2-1/8"	6"
	555-000-395	555-033-399	557-000-395	557-050-395	2"-12 UNF RH	4-1/4"	8-7/8"	10-11/16"	2-13/16"	1-1/8"	1-1/2"	2-1/8"	5-13/16"
	555-000-396	555-033-382	557-000-396	557-050-396	2"-12 UNF LH	4-1/4"	8-7/8"	10-11/16"	2-13/16"	1-1/8"	1-1/2"	2-1/8"	5-13/16"
	555-000-198	555-033-288	557-000-198	557-050-198	G1-1/2"(BSP) RH	108	225	268	71	29	35	55	147
	555-000-199	555-033-289	557-000-199	557-050-199	G1-1/2"(BSP) LH	108	225	268	71	29	35	55	147
2"	655-500-116	655-502-116	657-000-116	657-050-116	2"NPT RH	4-5/8"	10-1/16"	11-3/4"	3"	1-1/2"	1-7/8"	2-1/4"	7"
	655-500-117	655-502-117	657-000-117	657-050-117	2"NPT LH	4-5/8"	10-1/16"	12-7/16"	3"	1-1/2"	1-7/8"	2-1/4"	7"
	655-500-124	655-502-124	657-000-124	657-050-124	G2" (BSP) RH	117	246	289	65	28.6	47	60	164
	655-500-125	655-502-125	657-000-125	657-050-125	G2" (BSP) LH	117	246	289	65	28.6	47	60	164
本公司對旋轉接頭產品規格、設計特性均不斷改進，上述規格尺寸等參數如有變更，恕不另行通知！
